Visual Editor Poster Session

International Conference on Radiation Shielding

October 3, 2016

On October 3, 2016, Randy Schwarz presented a poster session at the International Conference on Radiation Shielding in Paris, France.  The poster session presented the new Visual Editor for MCNP6.  This software is currently in beta testing and is only available to students in Visual Editor workshops.  To see a schedule of workshops, visit the main page.  The images from this poster session are shown below.

Slide 2 Slide 3

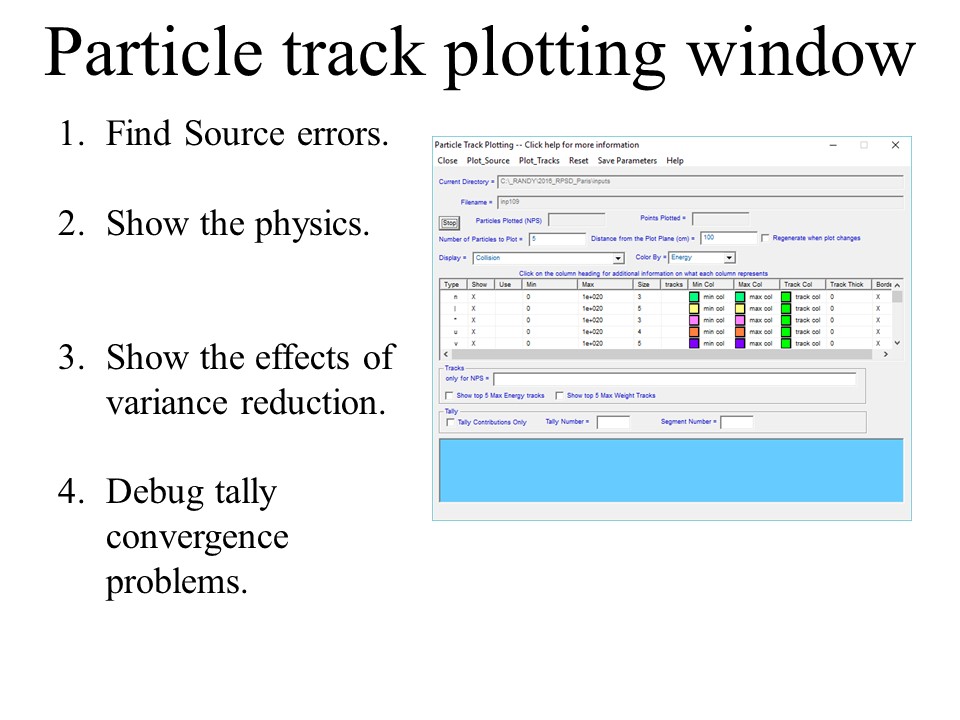

Partical Track Plotting in the Visual Editor for MCNP6 Particle Track Plotting Window

Slide 4  Slide 5

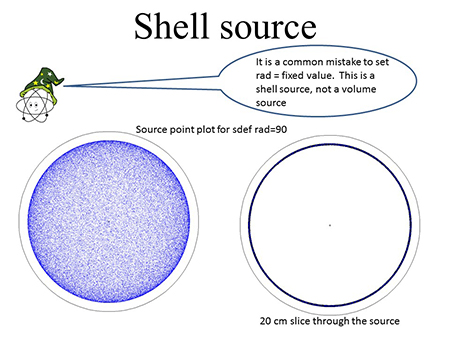

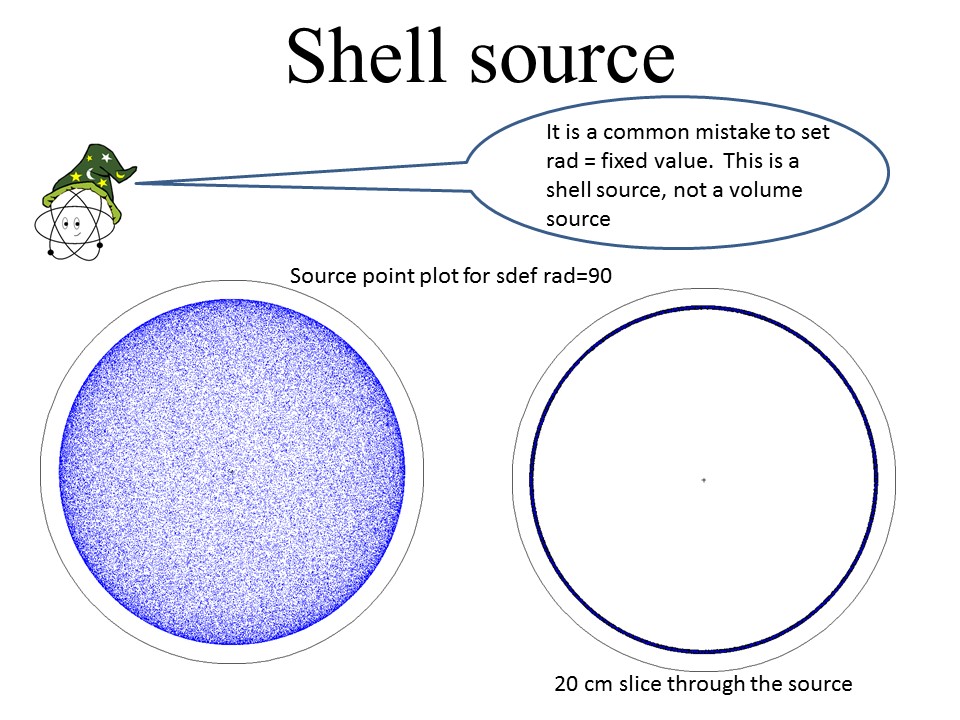

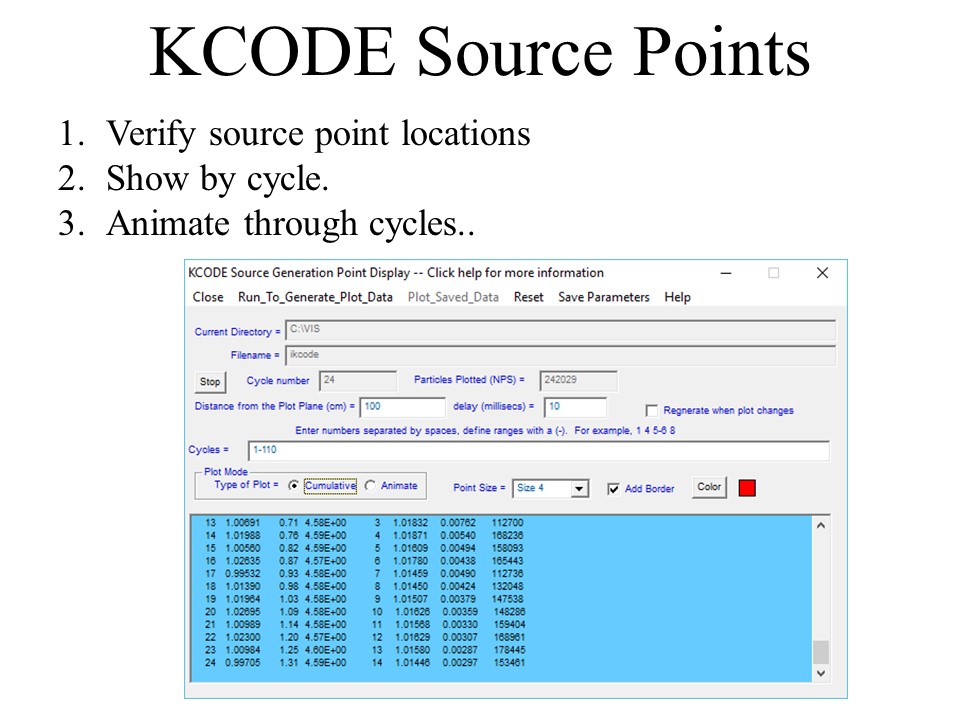

KCODE Source Points  Shell Source

Slide 6  Slide 7

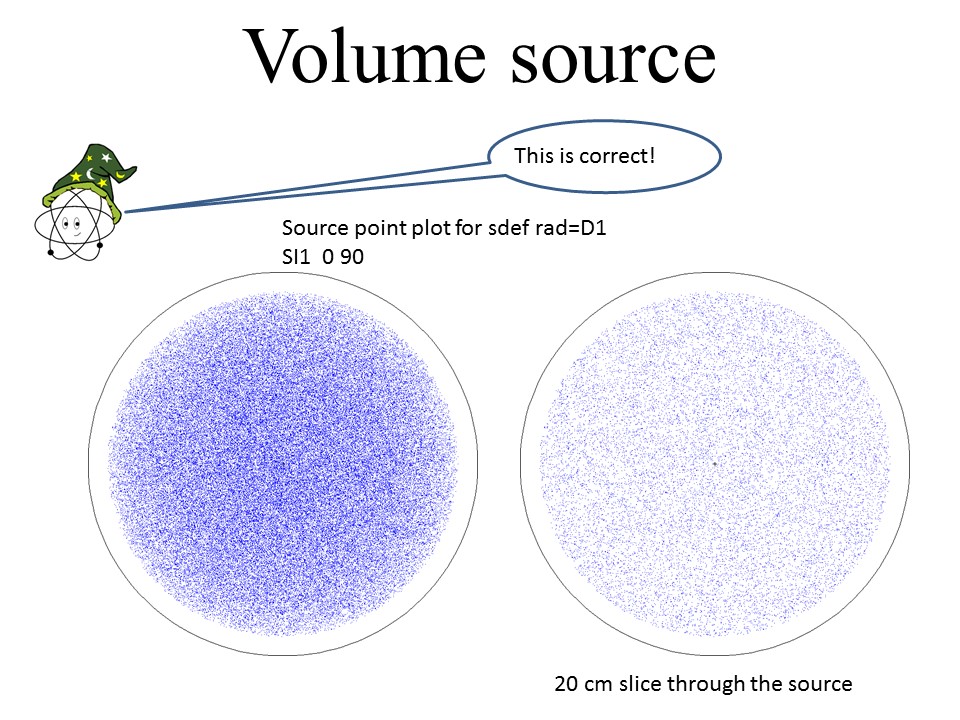

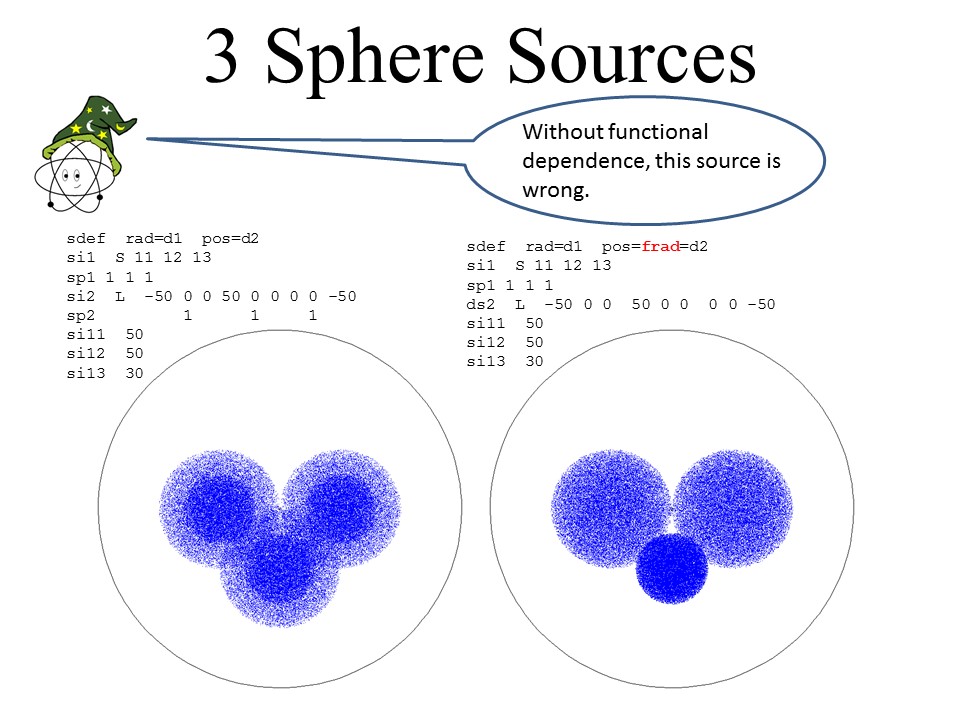

Volume Source  3 Sphere Sources

Slide 8  Slide 9

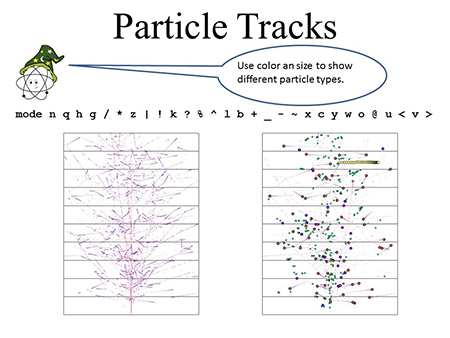

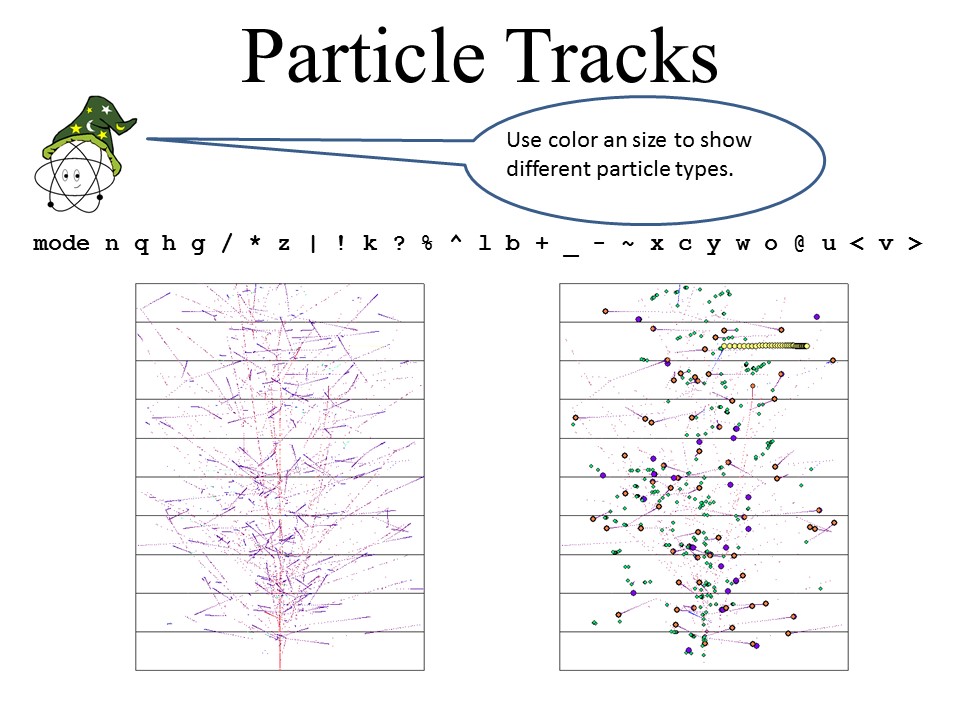

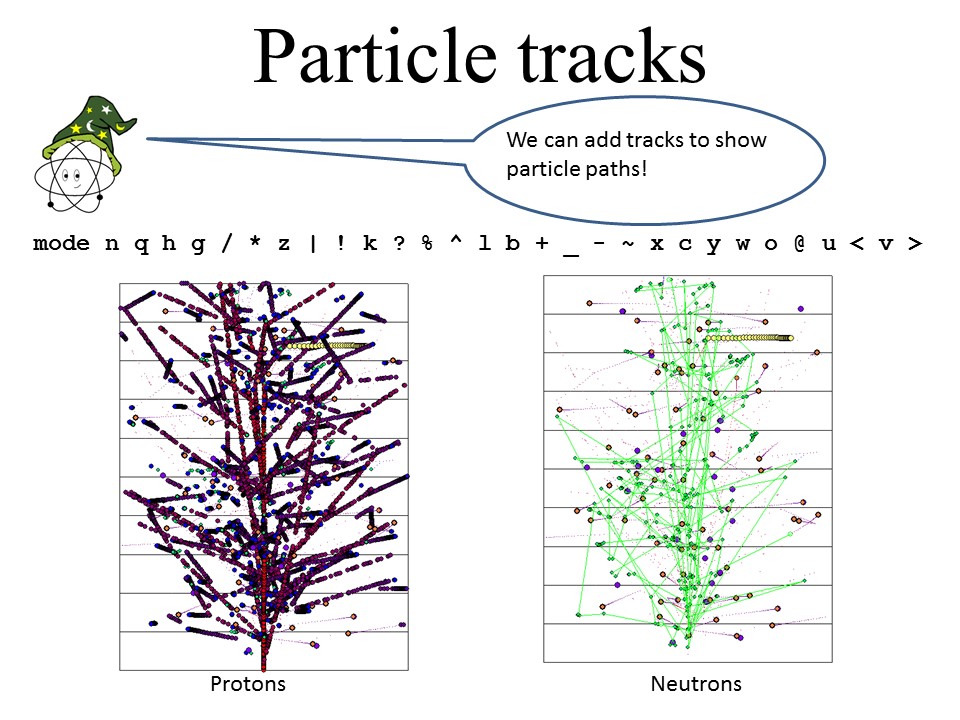

Particle Tracks - Color and Size  Particle Tracks - Paths

Slide 10  Slide 11

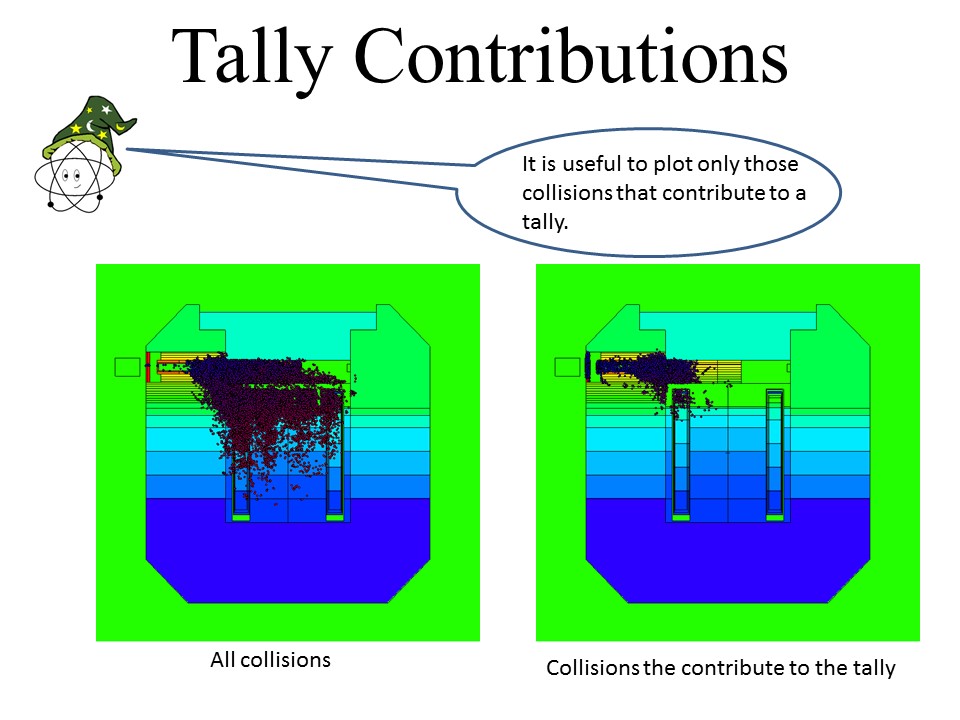

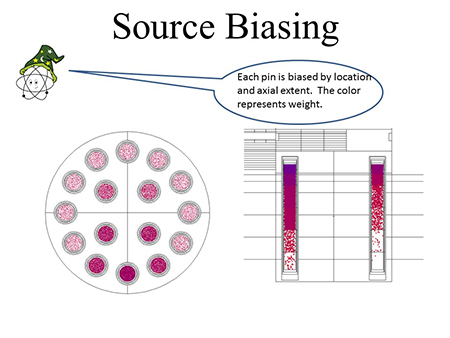

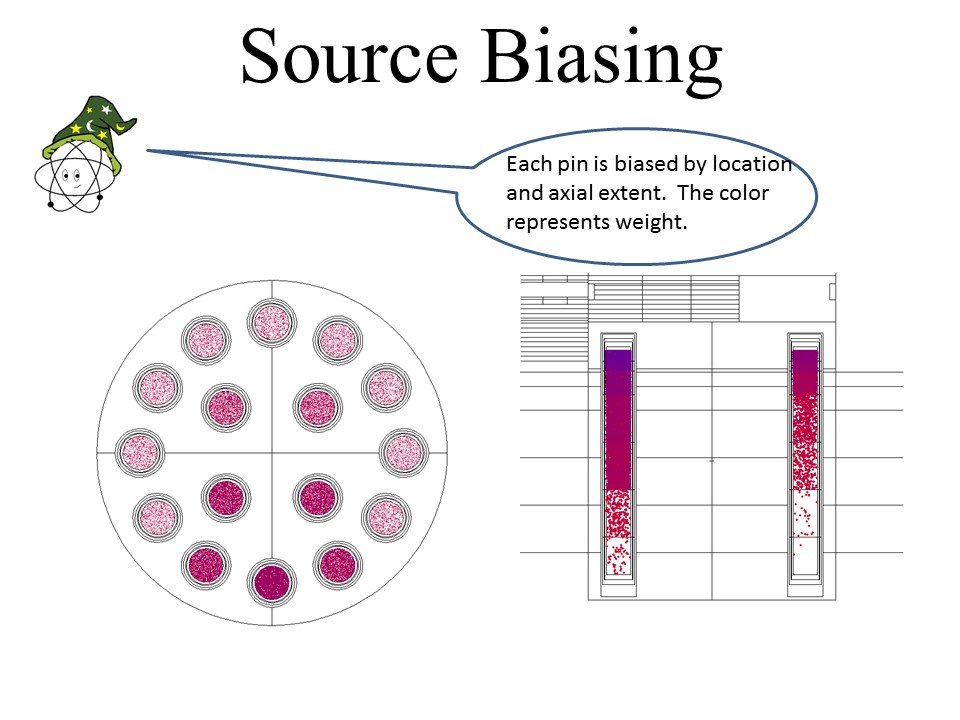

Source Biasing  Tally Contributions

Slide 12  Slide 13

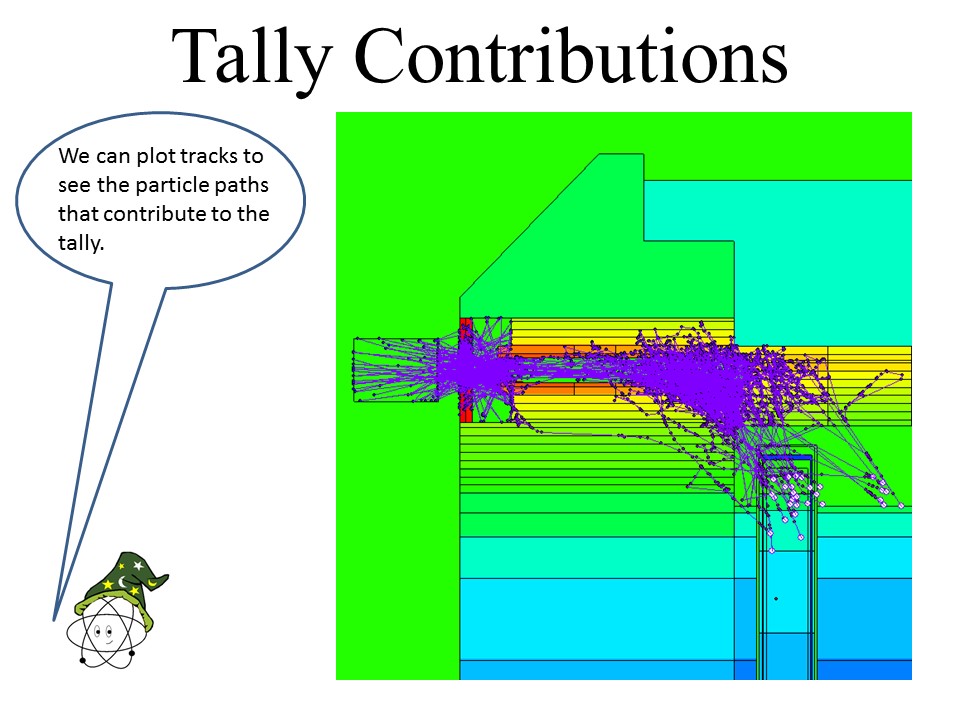

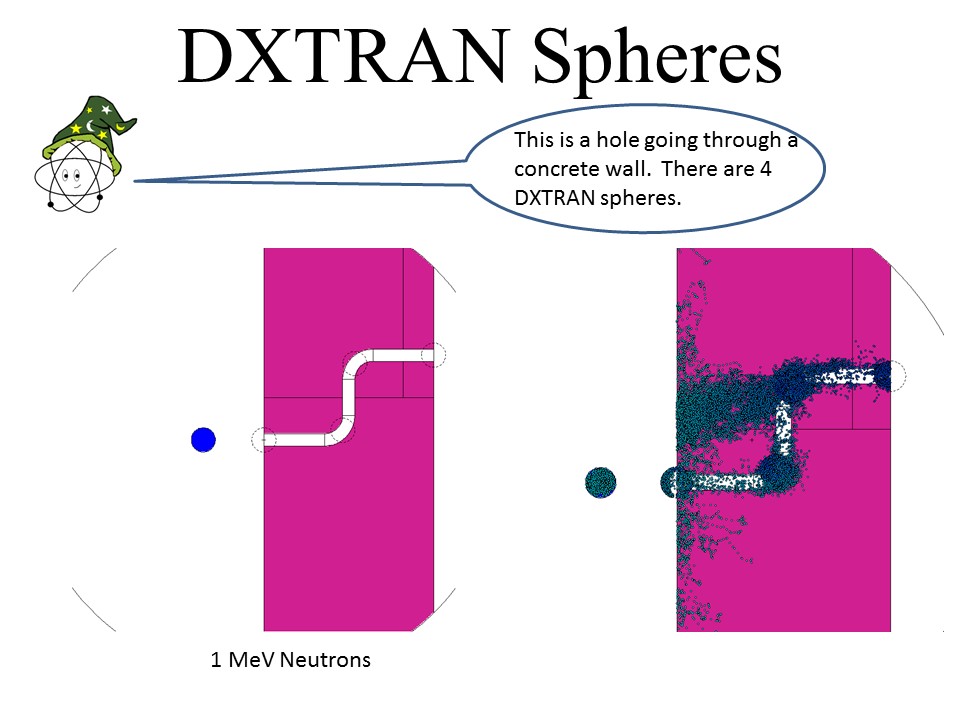

Tally Contributions  DXTRAN Spheres

Slide 14  Slide 15

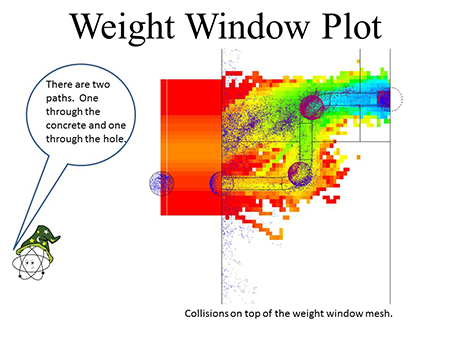

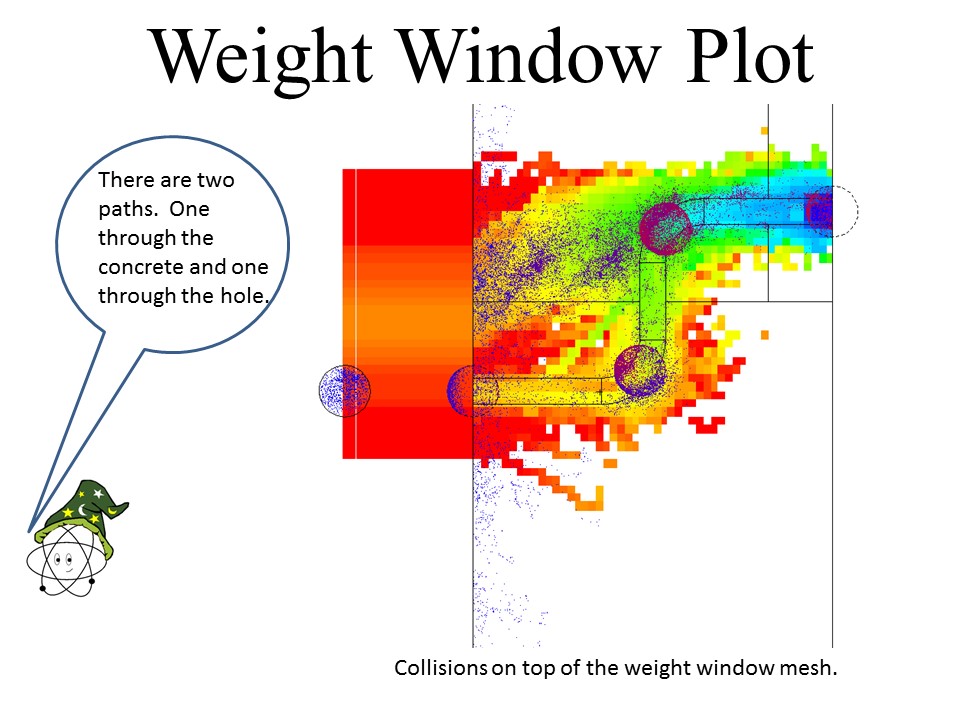

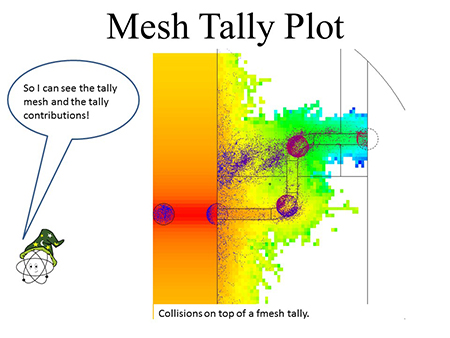

Weight Window Plot  Mesh Tally Plot

Slide 16  Slilde 17

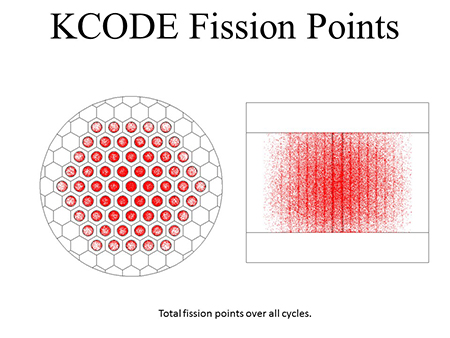

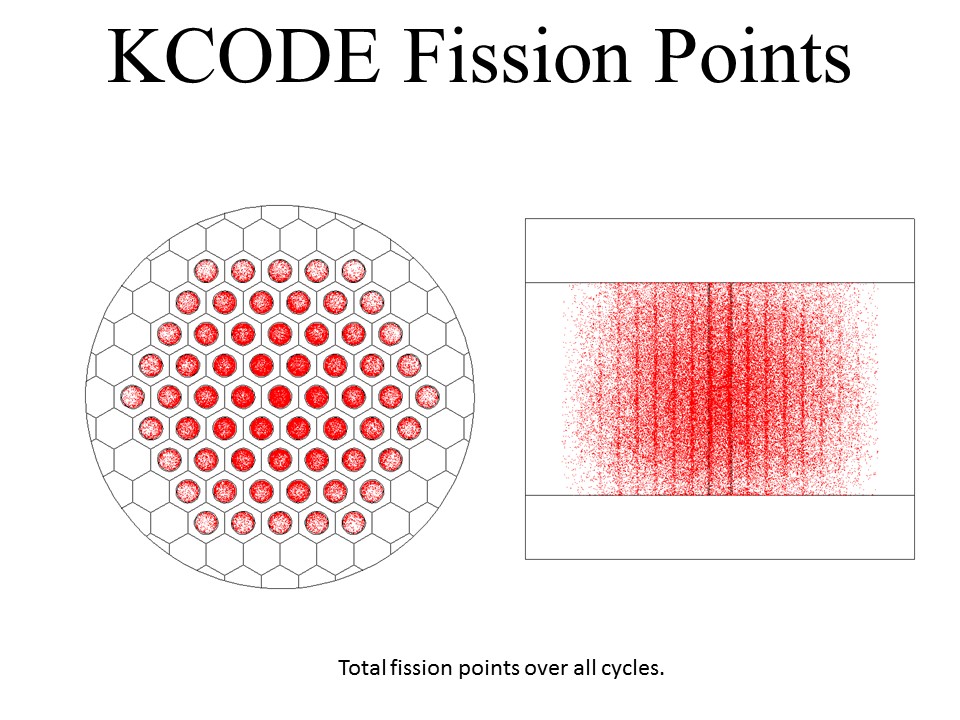

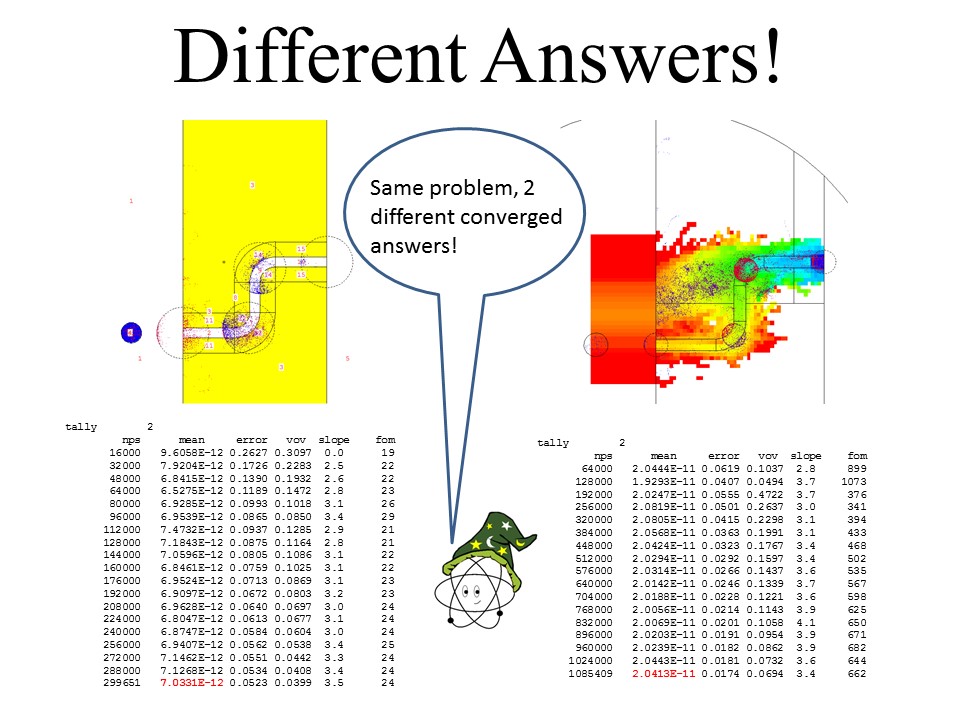

Different Answers  KCODE Fission Points

Slide 18  Slide 19

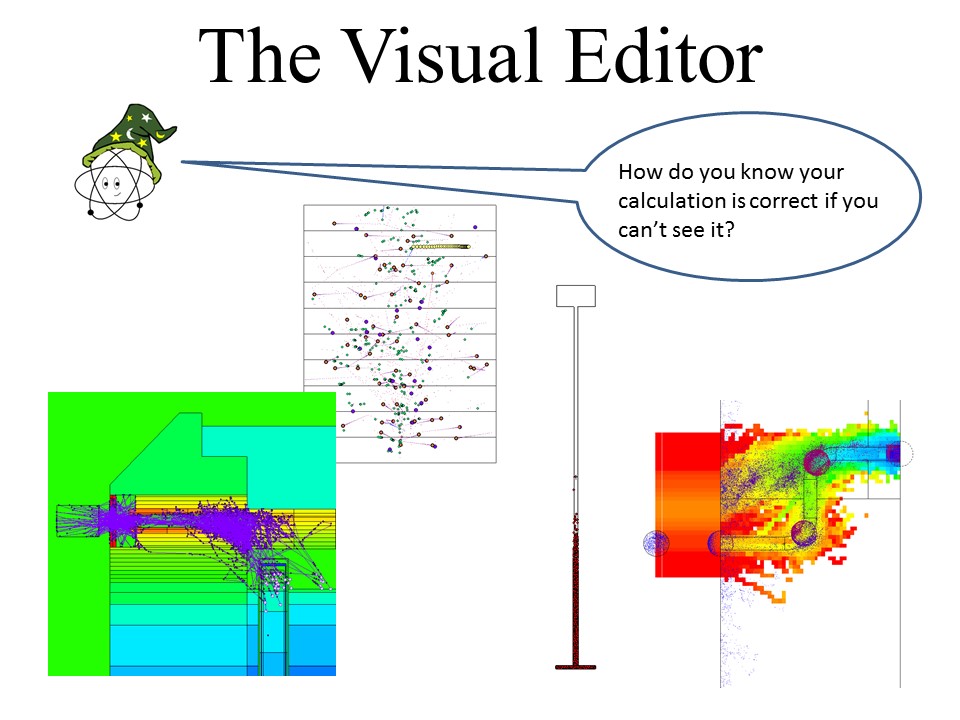

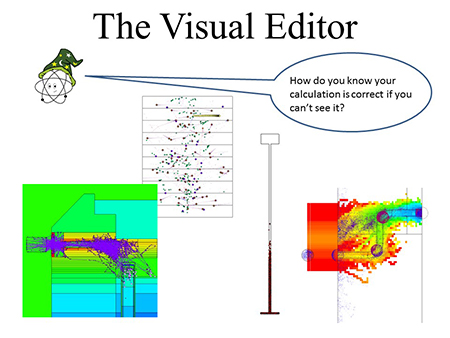

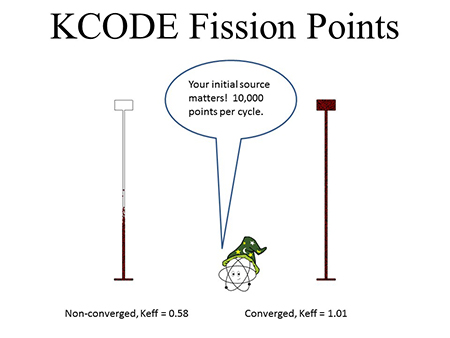

KCODE Fission Points  The Visual Editor
